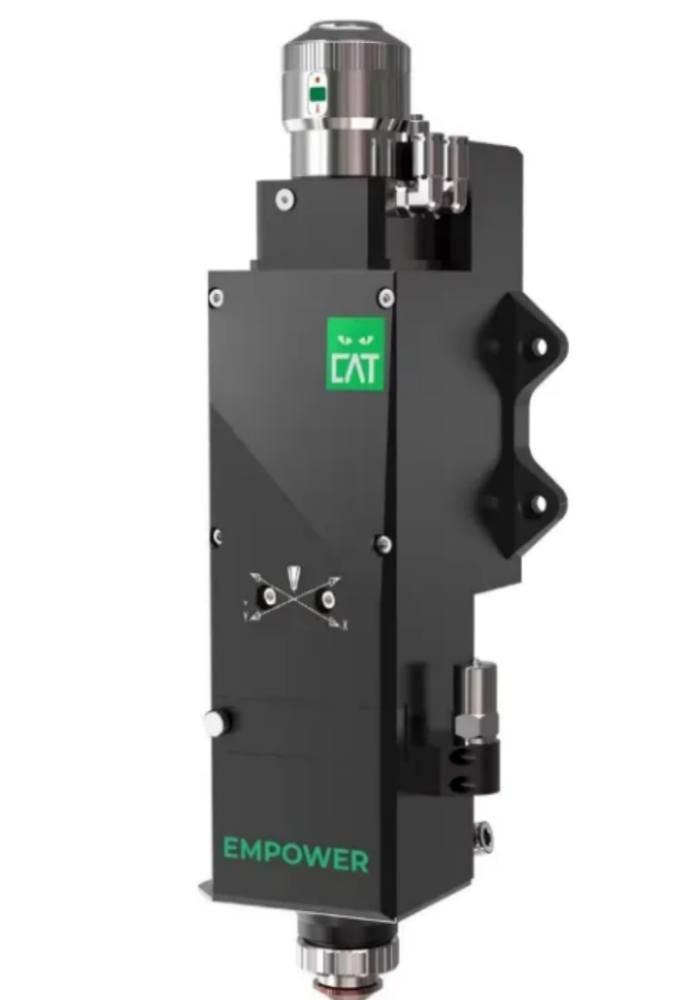

Description

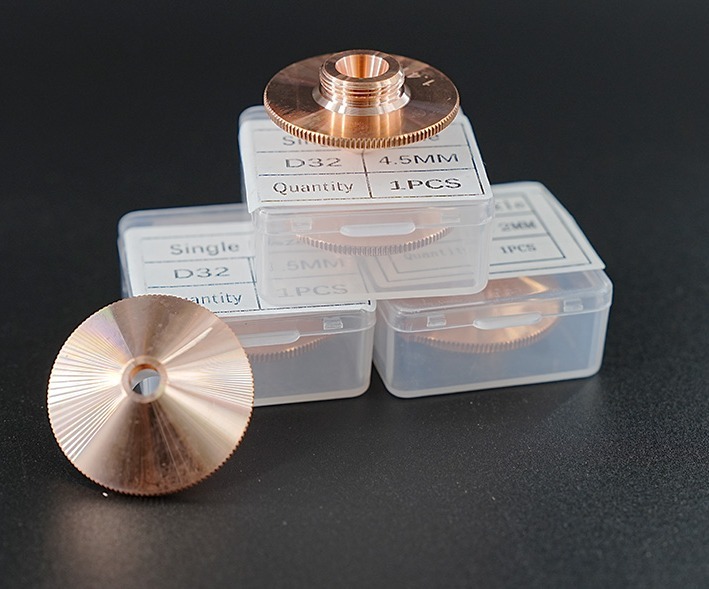

1. Nozzles (Single & Double Layer)
Most frequently replaced item.
Types
• Single-layer nozzle (for N₂ / Air cutting)
• Double-layer nozzle (for O₂ cutting)
• Materials: copper, brass, stainless steel
Functions
• Controls gas flow
• Helps achieve clean and narrow kerf
• Affects cutting speed & edge quality
⸻

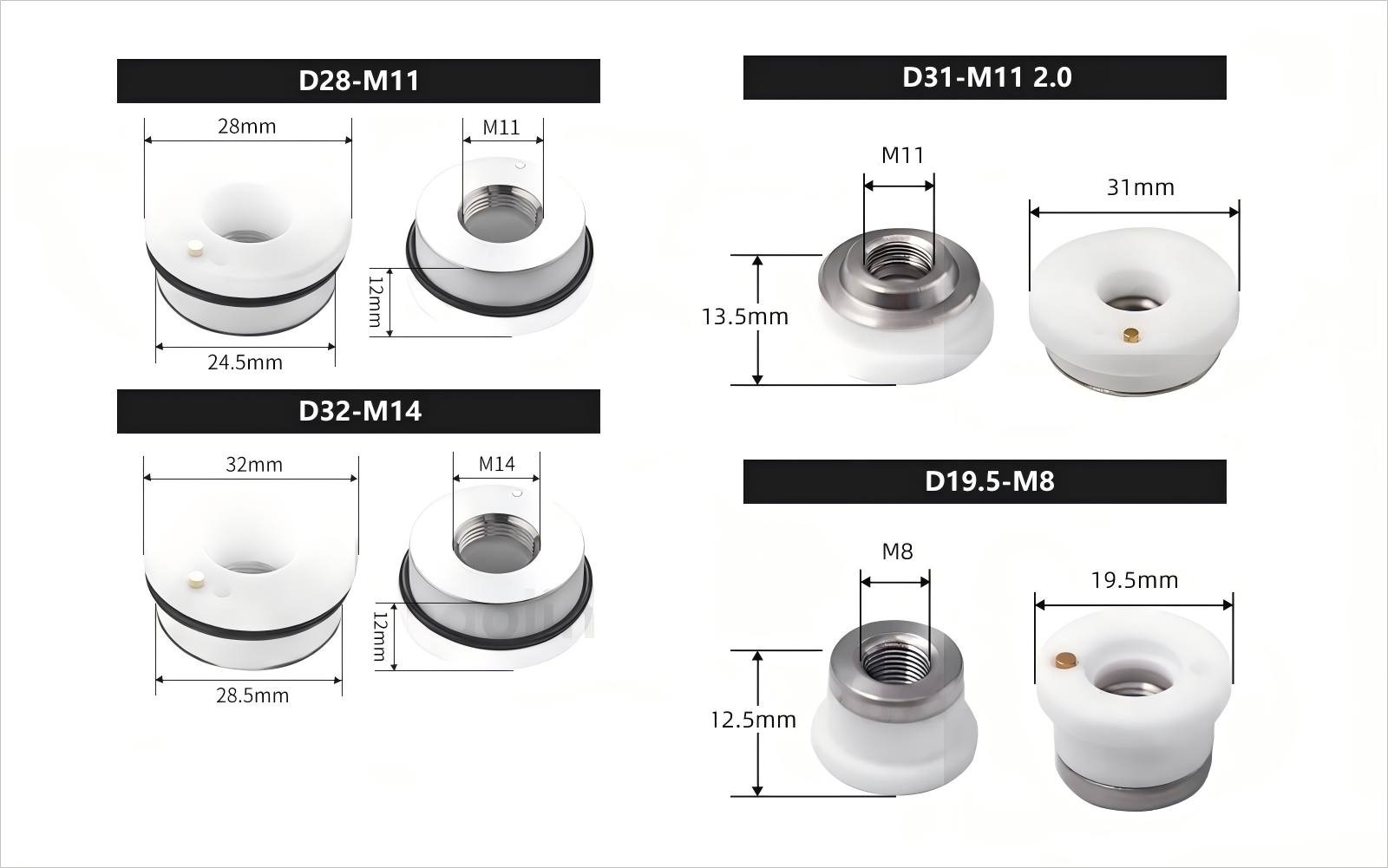

🔵 2. Ceramic Ring / Ceramic Holder
Located between nozzle and cutting head.
Purpose
• Thermal insulation
• Protects the cutting head
• Maintains nozzle alignment
If dropped → breaks easily.
⸻
🔍 3. Protective Lens (Cover Glass)
Directly under the nozzle.
Purpose
• Protects expensive internal focusing lens
• Gets dirty due to smoke, dust, slag
This lens needs the most frequent replacement after nozzles.
⸻

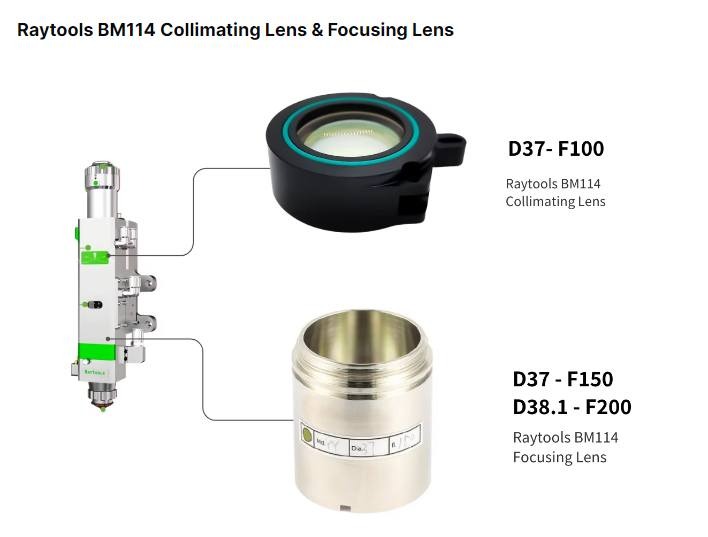

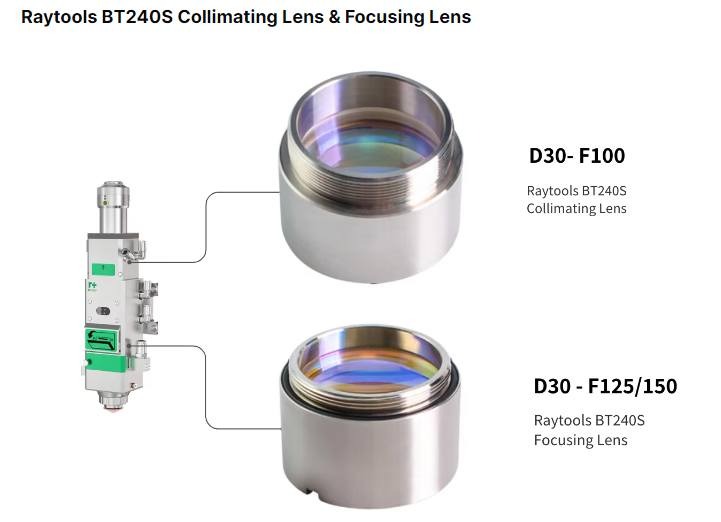

🔦 4. Focusing Lens / Collimating Lens
Inside the laser head.
Purpose
• Focusing lens: concentrates the laser beam
• Collimating lens: straightens the beam
These wear over time and must be replaced when:
• Cutting quality reduces
• Burn marks appear
• Beam power drops
⸻
🧩 5. Nozzle Holder / Copper Holder
Holds the nozzle in place.
Can get damaged if:
• Collision happens
• Too much heat
• Wrong installation
⸻
🧯 6. O-Rings & Seals
Used in gas path and lens holders.
Purpose:
• Maintain airtight gas flow
• Prevent leaks
• Protect optics
Cheap but important.
⸻
🧪 7. Gas Filters (O₂ / N₂ / Air)
Removes impurities from assist gas supply.
Bad gas → poor cutting quality.
⸻
🛏️ 8. Slats / Bed Plates (Slat Support)
The sheet metal rests on slats.
With high usage, slats:
• Bend
• Burn
• Melt
• Accumulate slag
Need periodic replacement.
⸻
❄️ 9. Chiller Consumables
For fiber laser cooling.
Includes:
• Coolant / distilled water
• Water filter
• Pump filter
• Anti-rust solution
⸻
🧼 10. Cleaning Supplies
• Lens cleaning wipes
• IPA (Isopropyl alcohol)
• Dust-free wipes
• Nozzle cleaning pins
Used for maintaining optics.
⸻
🧲 11. Other Common Consumables
• Break-away sensors (on some heads)

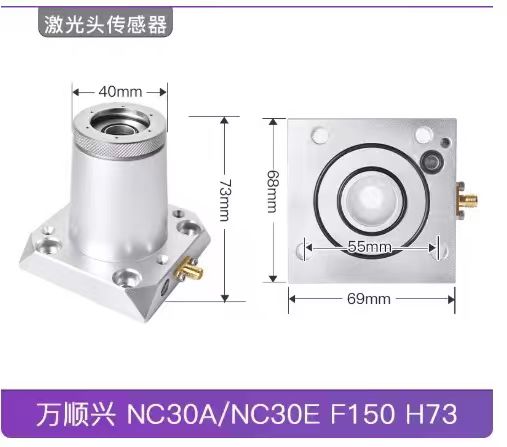

• Height sensor rings
• Welding-type ceramic cups (for welding heads)
• Assist gas nozzles (for special applications)
⸻
🏭 Consumables by Laser Head Brand

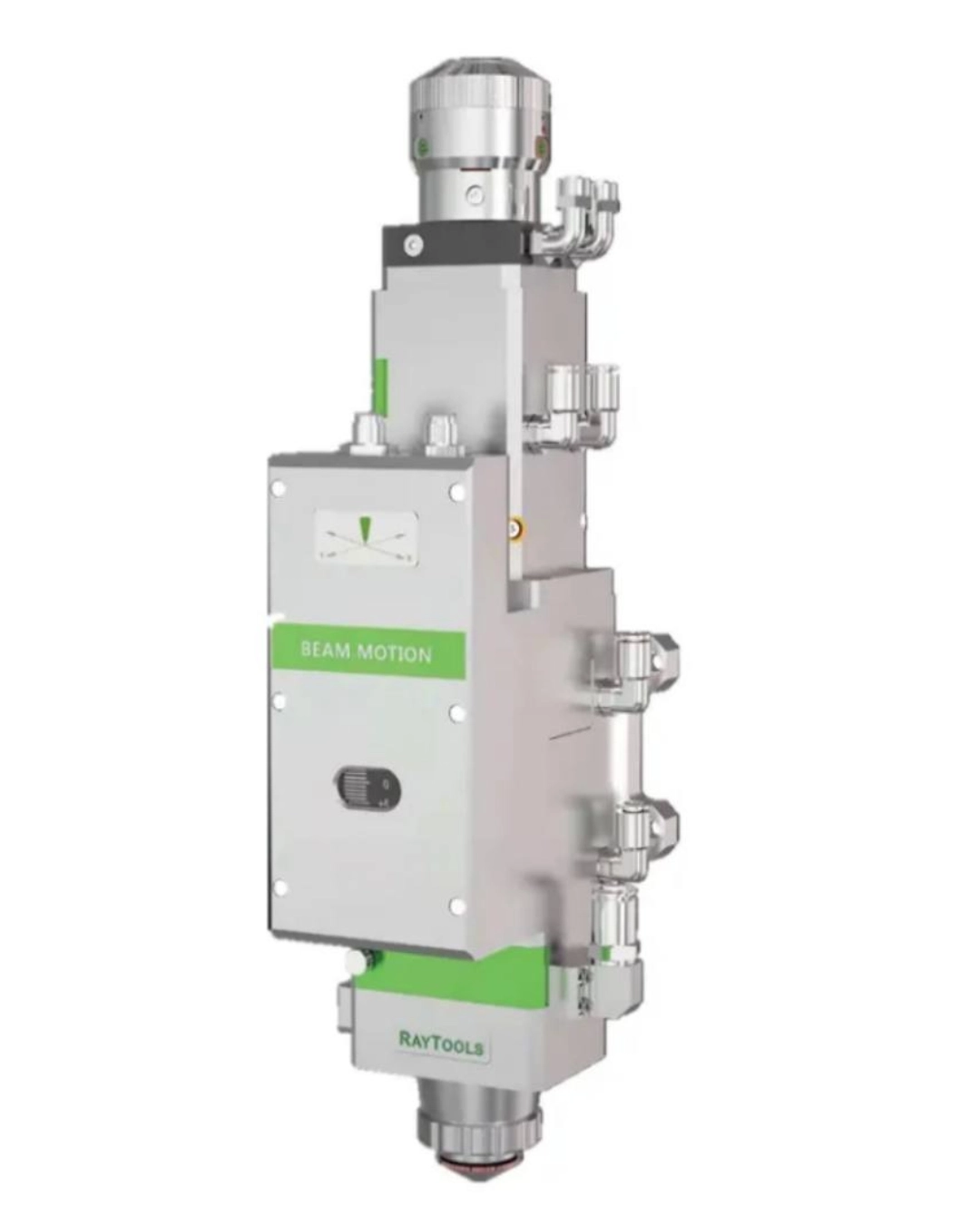

Raytools
• Nozzle
• Ceramic ring BT210S
• Protective lens D20, D24
• Collimating lens
• Focusing lens 100 / 125 / 150
WSX
• Ceramic BT240
• Protective lens D19, D20
• Focusing lens 150
Precitec
• Nozzle
• Protective window
• Sigma ceramic parts
• Sensor cartridges
Ospri / Au3Tech / BOCI
• Nozzles
• Ceramic rings
• Protective lens
